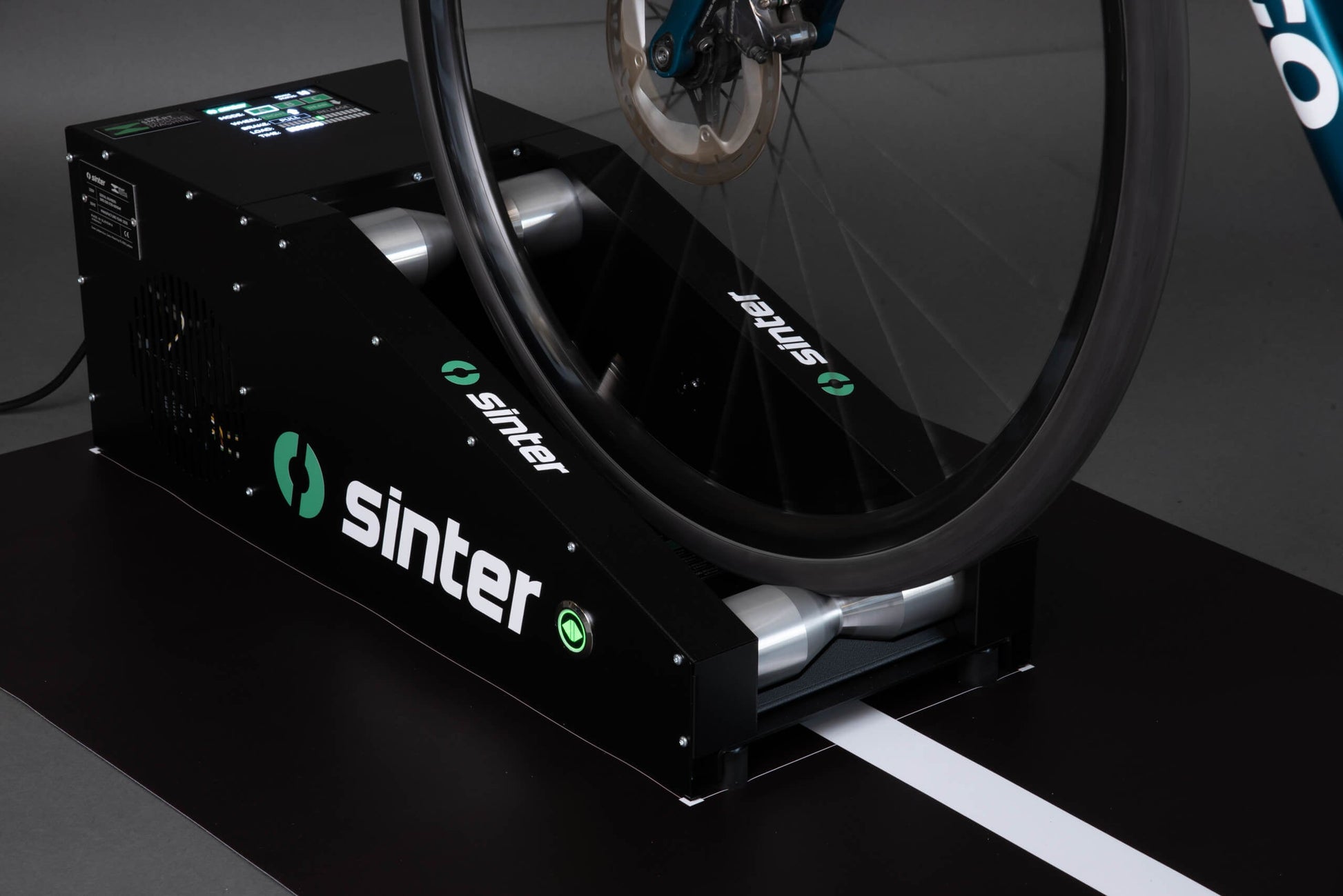

Smart Bedding Machine - front view

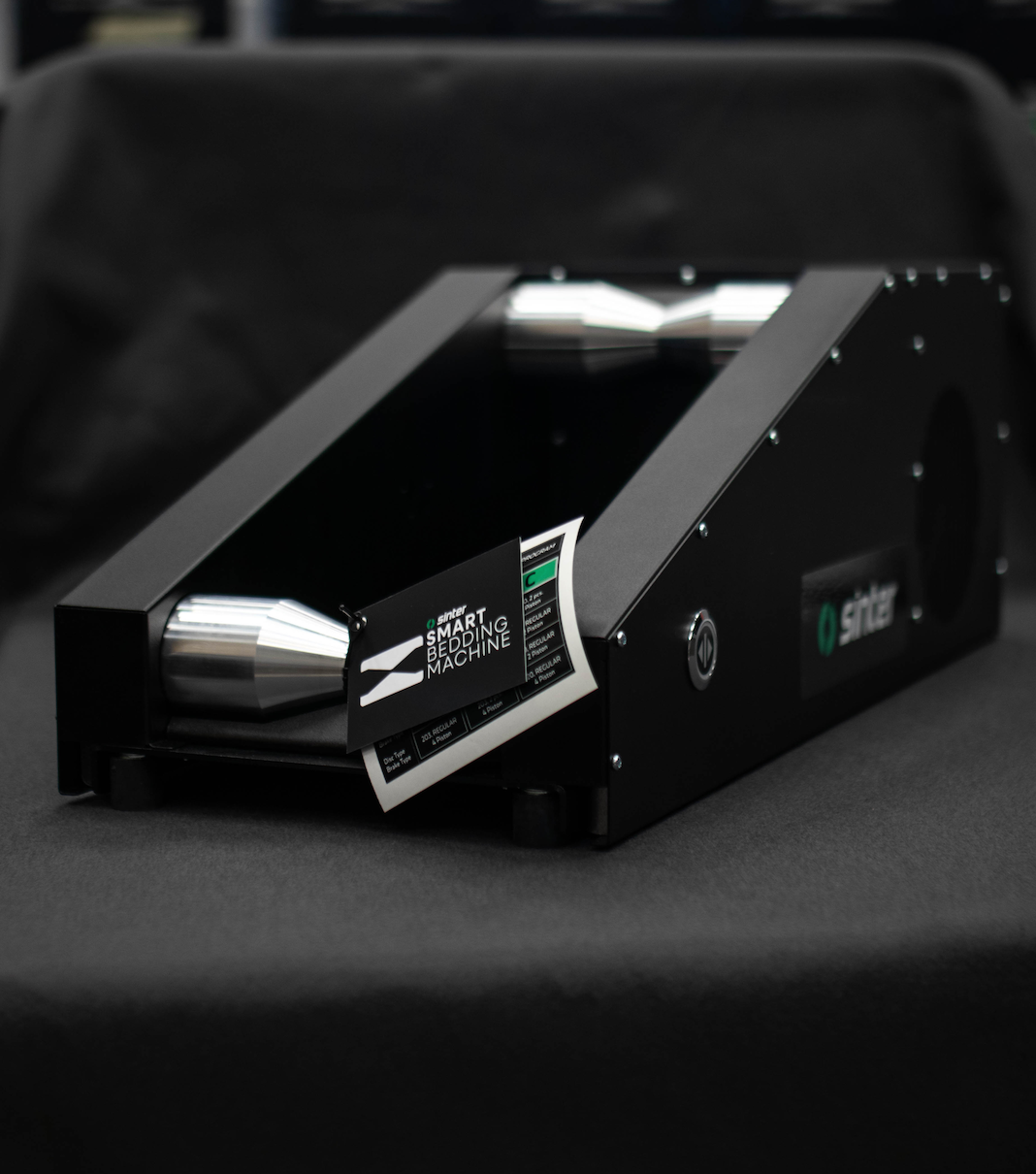

Smart Bedding Machine

The Sinter Smart Bedding Machine will save your technicians time and money all while preparing new pads for the ultimate in braking performance from the first pull of the levers. With a wide variety of different brake pads, brake systems and rotors on the market our machine makes it simple for mechanics to choose the proper mode to bed in pads correctly, resulting in a safer, and better performing user experience.

€2.499,00 EUR
€2.499,00 EUR
Sale Sold out
Tax included.
View full details

Features

Sinter UMP 1974 2

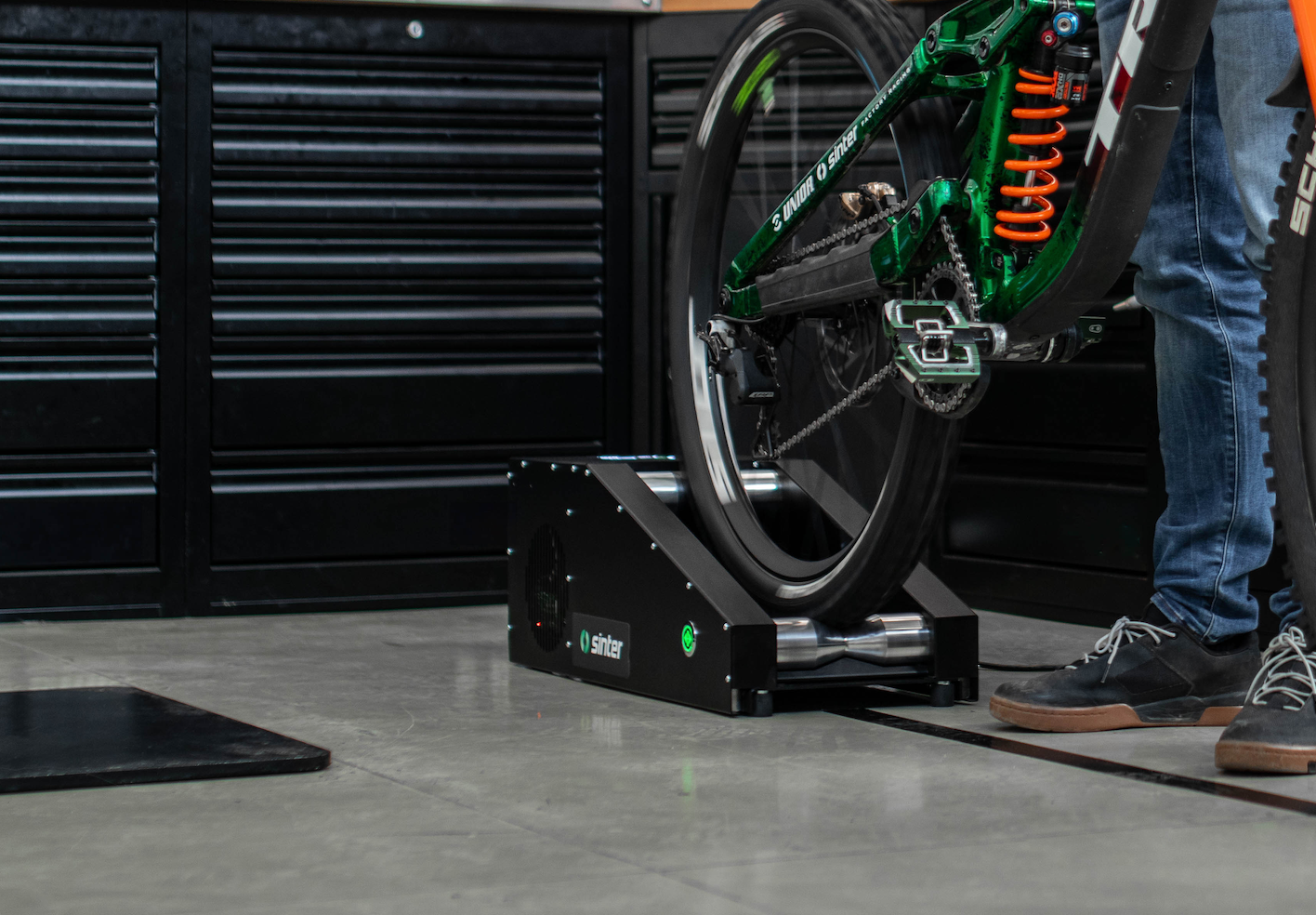

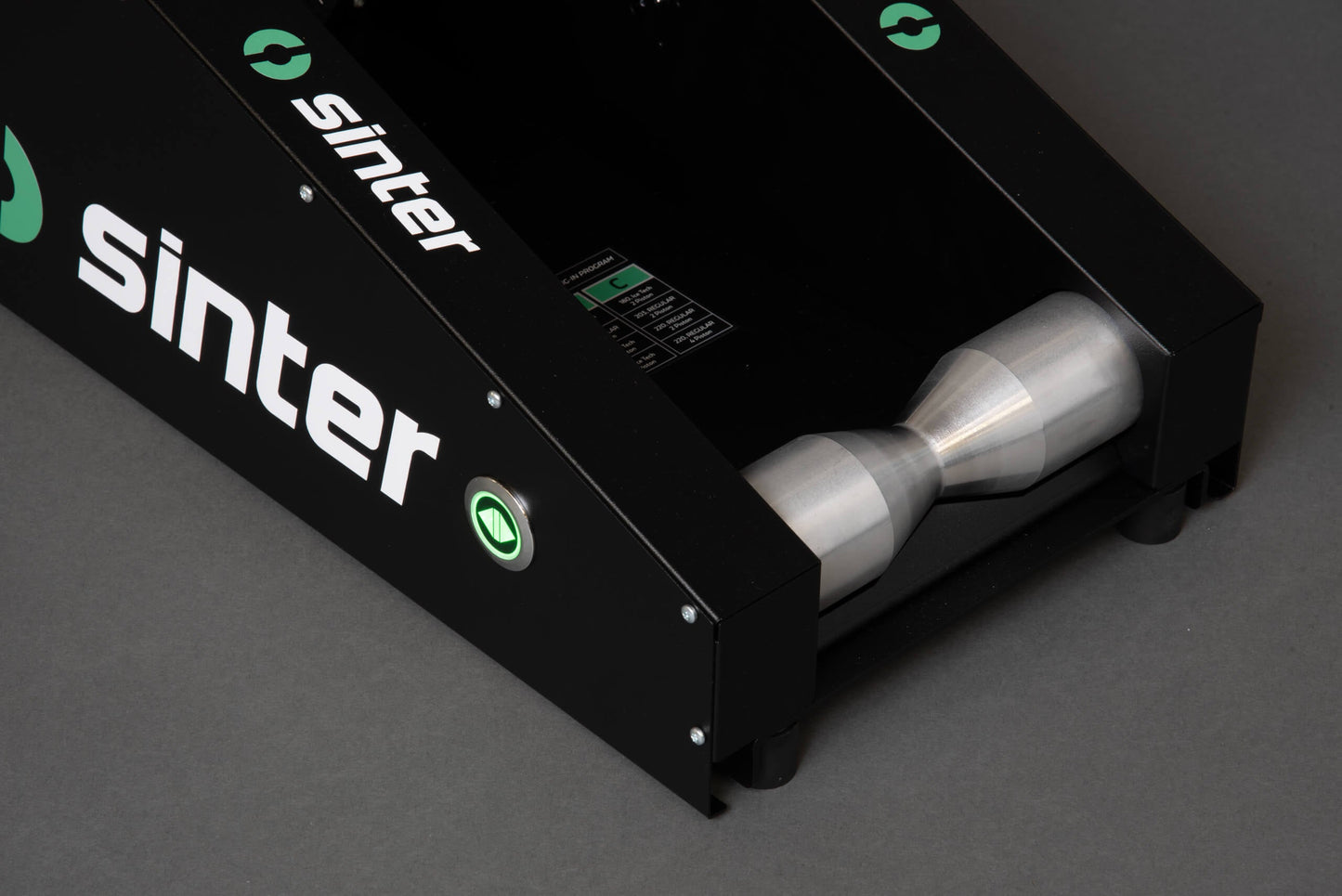

DUAL DRIVE V FORM ALUMINIUM ROLLERS ACCOMMODATE EVERY WHEEL AND TIRE COMBINATION FROM 20" TO 29"

The Dual V form rollers keep positive traction on your wheels while holding the bike steadily in place as you apply the brakes.

Sinter UMP 1957 2

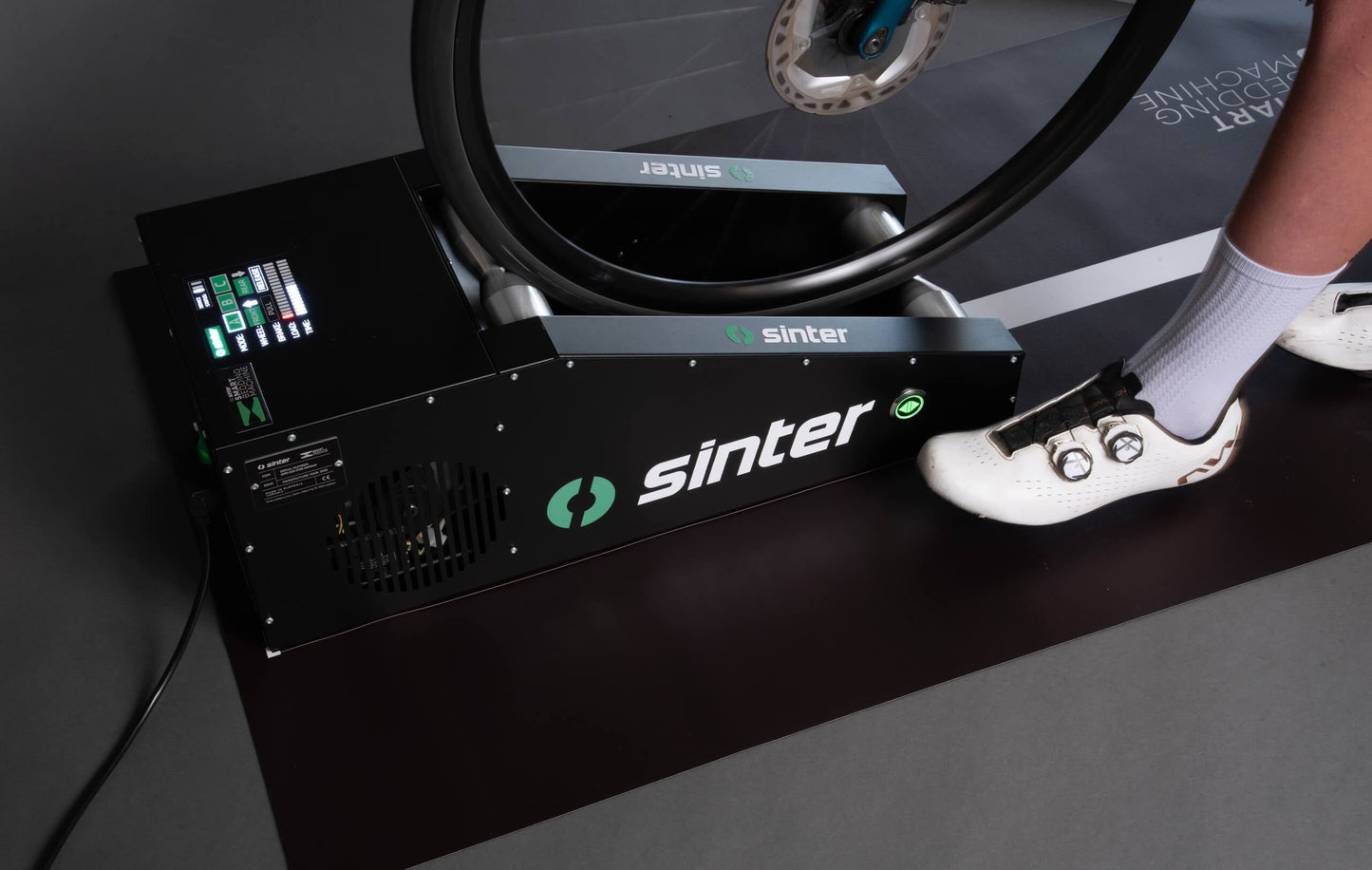

CHANGE THE DIRECTION OF THE WHEEL WITH A WAVE OF YOUR FOOT

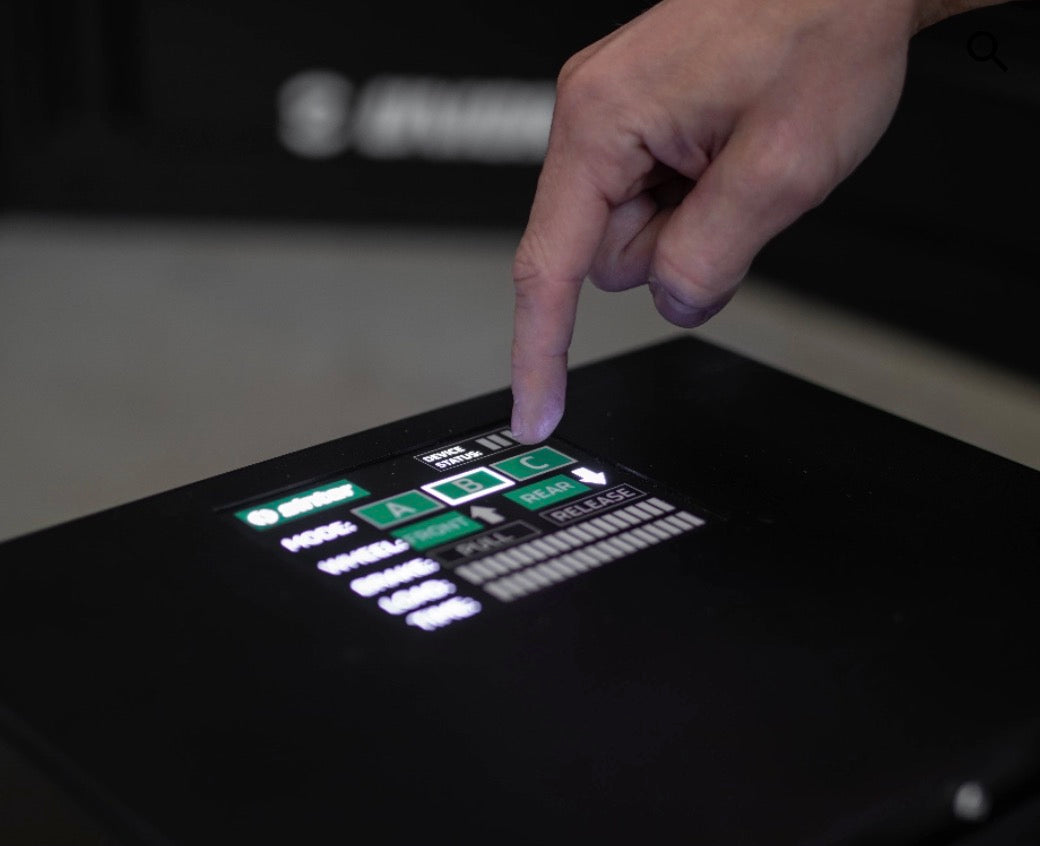

The roller drive direction can be changed with a simple wave of your foot past the touchless sensor, or by using the control panel on top. There are separate functions for the front and rear wheel.

Sinter brake pads product image

FAILSAFE USABILITY PROCEDURE MAKING THE BEDDING-IN PROCESS EASY

Our machine will walk the user through the bedding process step-by-step so that it is done to a safe, consistent and high-performance standard.

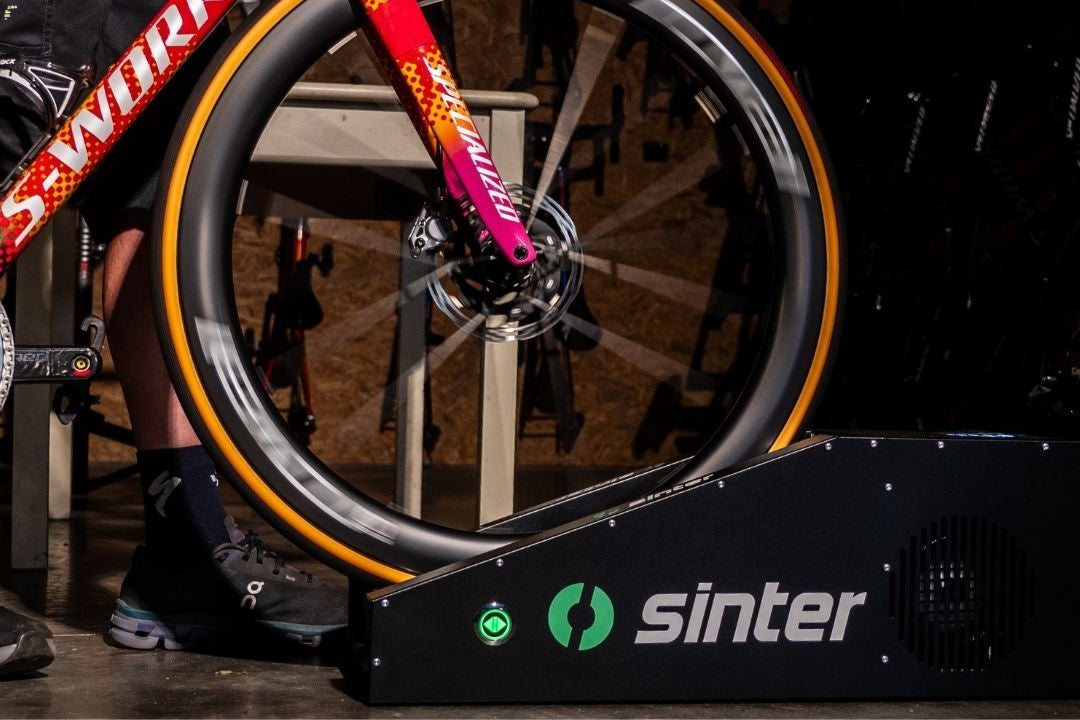

Specialized S-Works bike mounted on Sinter Smart Bedding Machine in workshop

SPEEDING UP THE NEW PAD SERVICE AND BIKE ASSEMBLY PROCESS.

Not only does the Bedding Machine produce pads that out perform parking lot bedded pads by more than 20% but the quick processing time saves you valuable time and money! In rain, snow or sweltering heat your technicians can bed in pads in just a few minutes. With the processing time of bedding-in pads being substantially reduced this means that less hours are used allowing you to focus workshop efforts elsewhere and speeding up the overall bike build process.

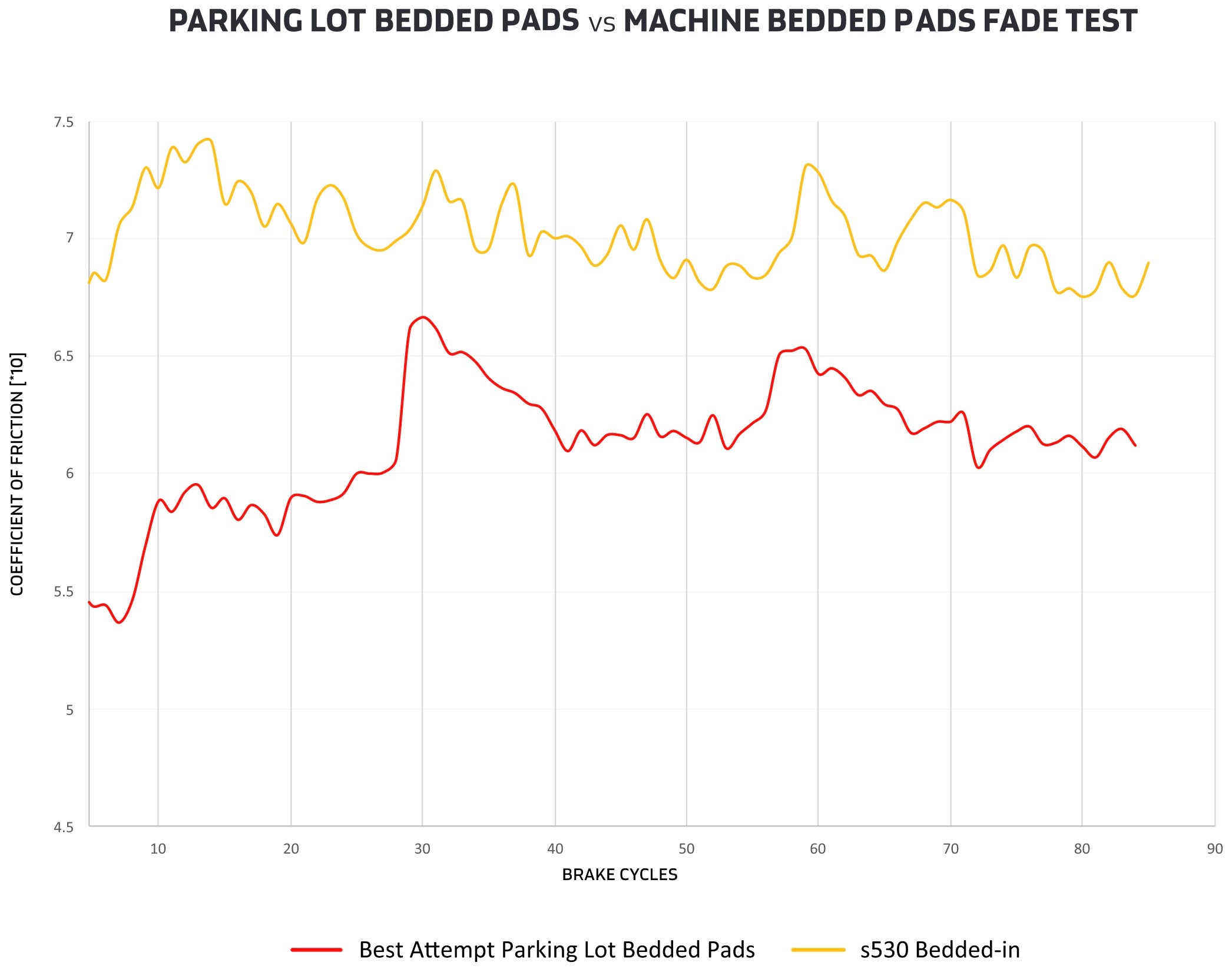

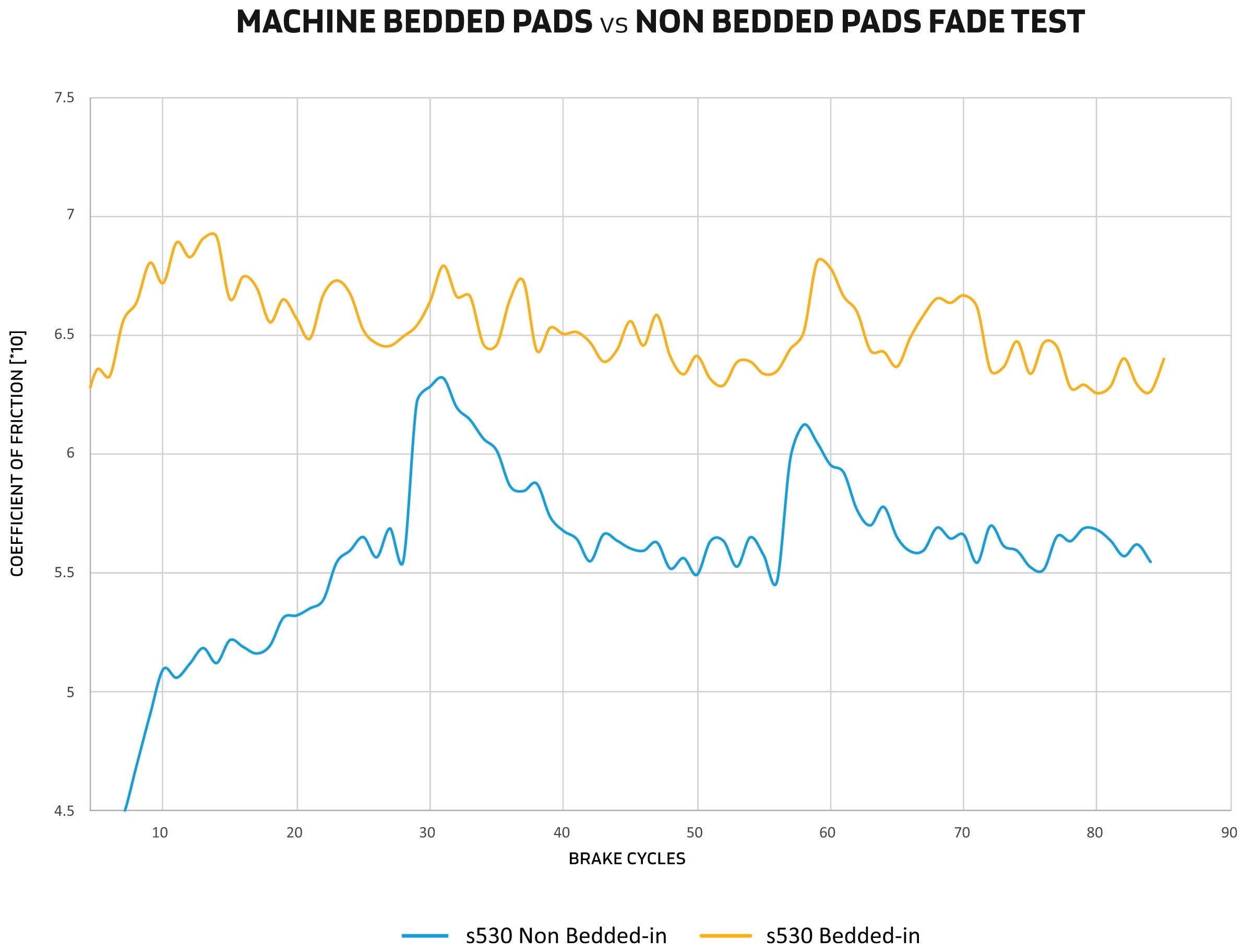

THE PROOF IS IN THE RESULTS

Sinter brake pads product image

OVER 20%
MORE BRAKING PERFORMANCE

Parking lot bedding-in cannot compete with the performance from a repeatable program found on the Smart Bedding Machine. The initial friction benefits are always present.

Sinter brake pads product image

CONSISTENT, SAFE, HIGH PERFORMANCE BRAKING AFTER BEDDING

Bedding-in pads provides greater initial performance and consistent long terms benefits through multiple brake cycles. Sending a customer out the door with pads that are not properly bedded is simply unsafe.

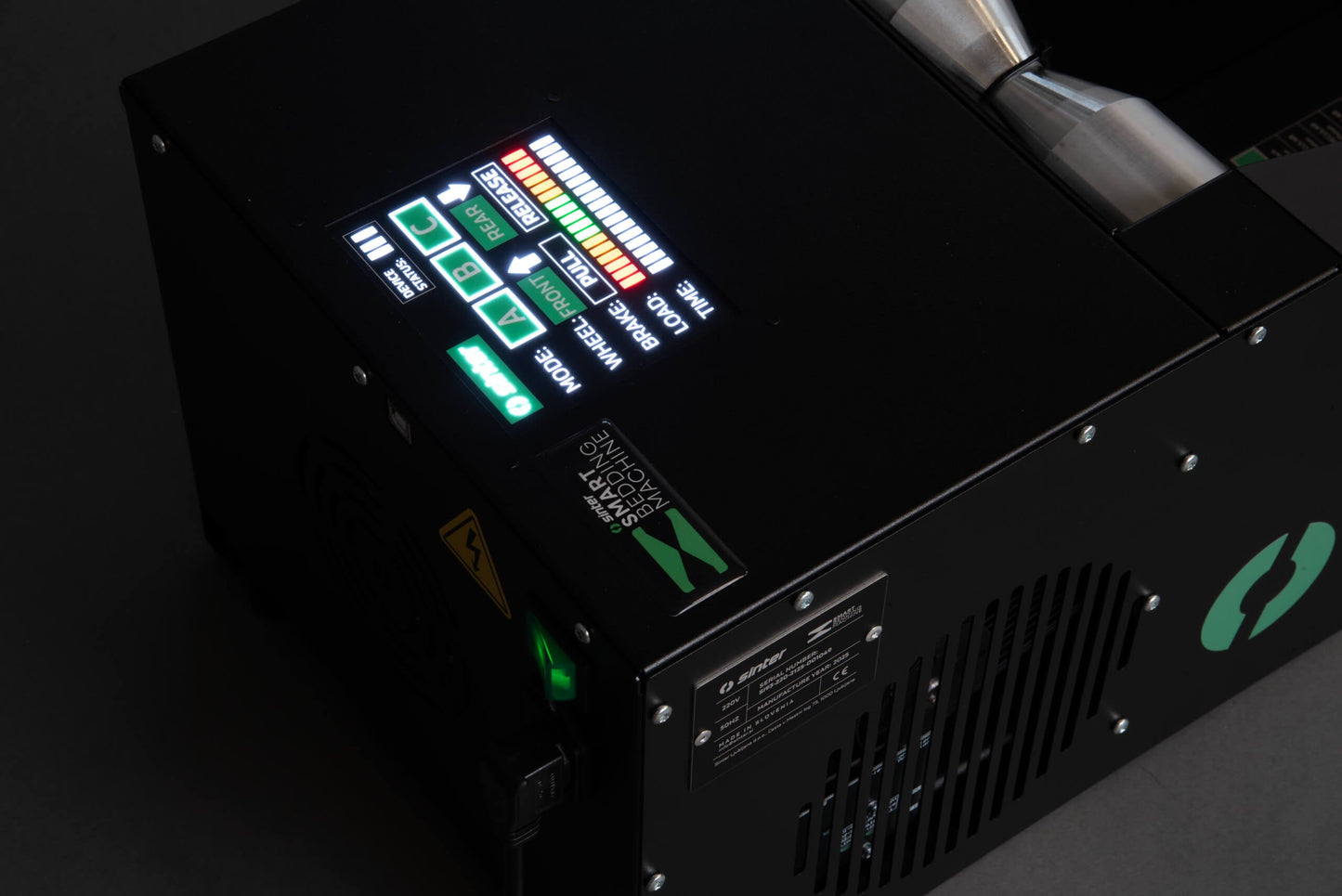

Sinter UMP 1969 2

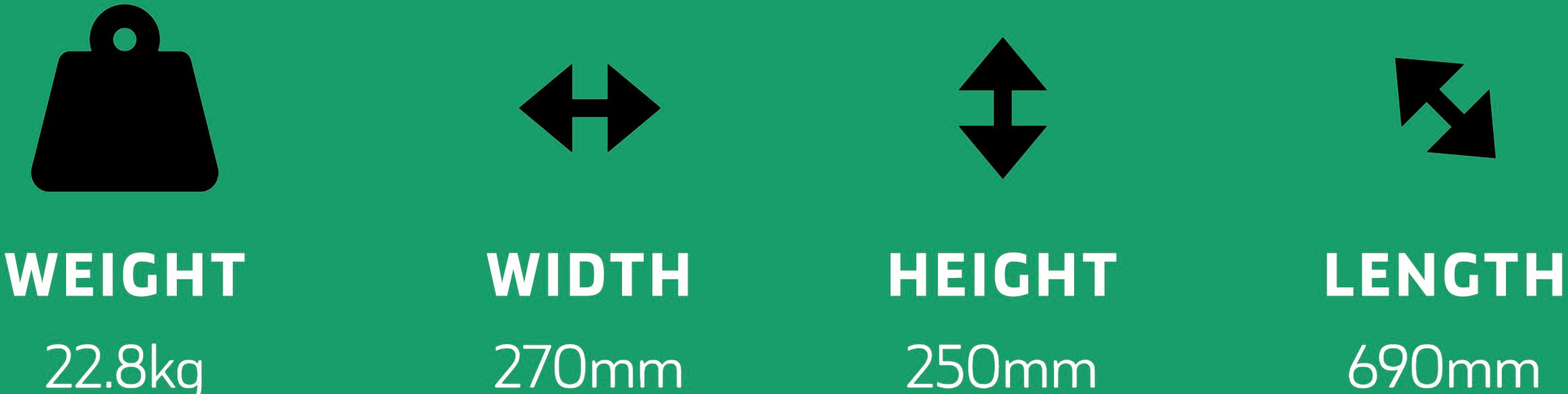

SPECIFICATIONS

Sinter brake pads product image

- Generated speed: 24km/h (Tire dependent)
- V Shape Dual Drive Aluminium rollers
- Wheel sizes from 20" to 29" - Tire widths from 1.0" to 3.0"
- 220v or 110v models available - Change direction for Front to Rear wheel via touchless foot sensor or on control panel button

Sinter brake pads product image

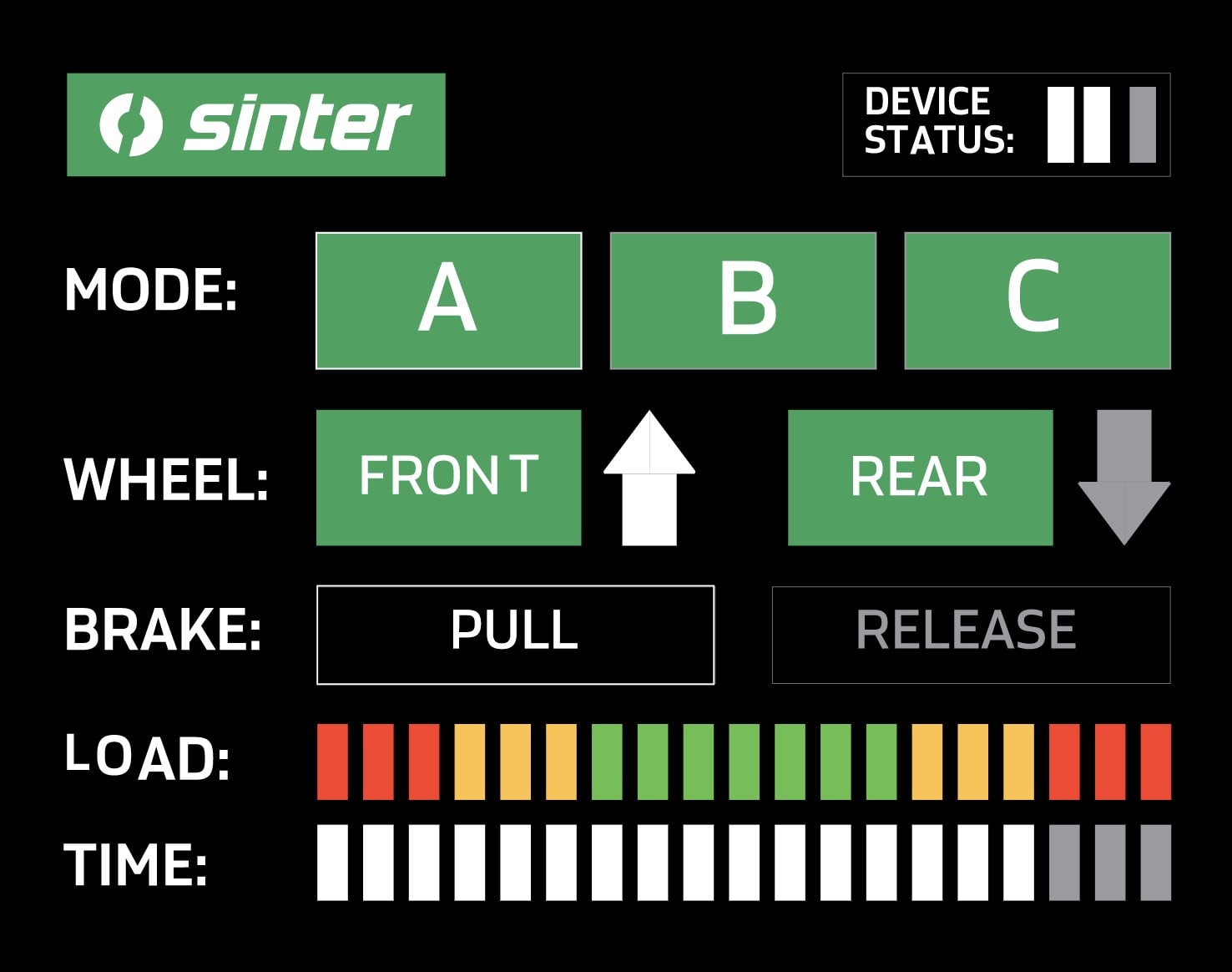

USAGE GUIDE

DEVICE STATUS Indicates the status of the machine
MODE (A, B, C) Select different bedding-in programs based on Rotor Size and Braking System
WHEEL Indicating Front or Rear wheel
BRAKE Indicating when to pull or release lever
LOAD Load indicator to allow user to modulate braking force for consistent bedding-in
TIME Remaining brake and cool down times between cycles
